PRO-MASTER 7018

PRO-MASTER 7018

EFFICIENCY AND HIGH PERFORMANCE

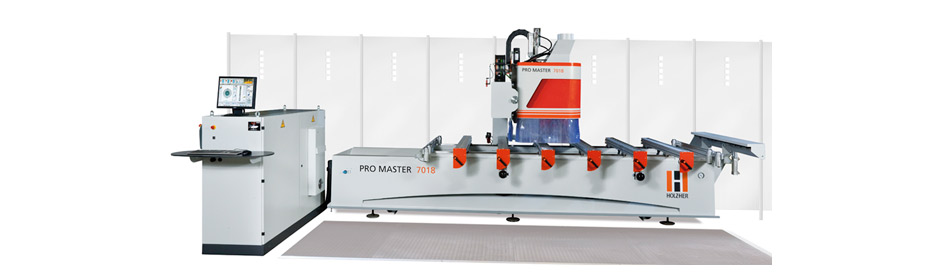

The new PRO-MASTER 7018 of HOLZ-HER, Germany, offers a series of interesting new features. Of particular note are the longer, 1250 mm consoles between the stops in the Y-direction. Together with the double positioning in the X-direction and a 3-field safety mat (optional) as a prerequisite for pendular machining, the PRO-MASTER 7018 achieves a high production rate. The new length dimension of 1,250 mm & processing height of up to 180 mm is achieved with all vertical drilling and cutting units.

The large X motion paths (2500 and 3200 mm) , tool changers – moving changer for 18 tools and/or pick-up changer for 12 tools offers easy solutions for furniture construction. The machining head is equipped with a high performance 11 kw cutter with hybrid bearings and a speed of up to 24,000 rpm. The HSK collet chucks provide an accurate hold on the tools even at high feed rates. Various drilling units with up to 24 spindles are available for rational drilling.

The control equipment includes the CAMPUS package with integrated Cabinet Control software. This package provides all prerequisites for effective machining and convenient operation – such as barcode interface, hand-held control and import capabilities. The Work Center shows the occupancy of the machine table. Tools, drilling heads and routes are automatically optimised over the workpiece as a whole and the operating times are calculated. A full-fledged 2-D CAD system is also included as a standard feature. The machine is controlled by an industrial PC.
